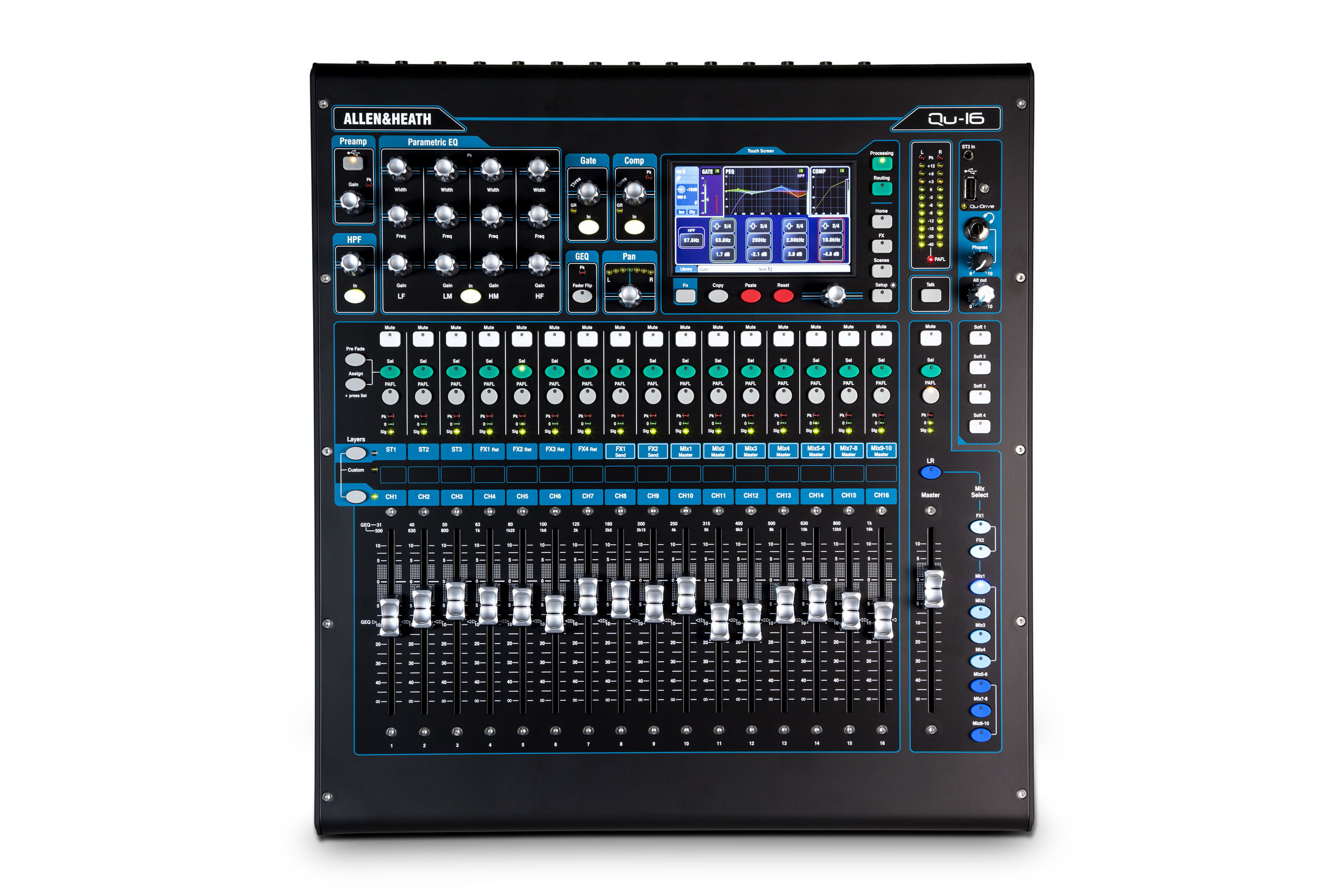

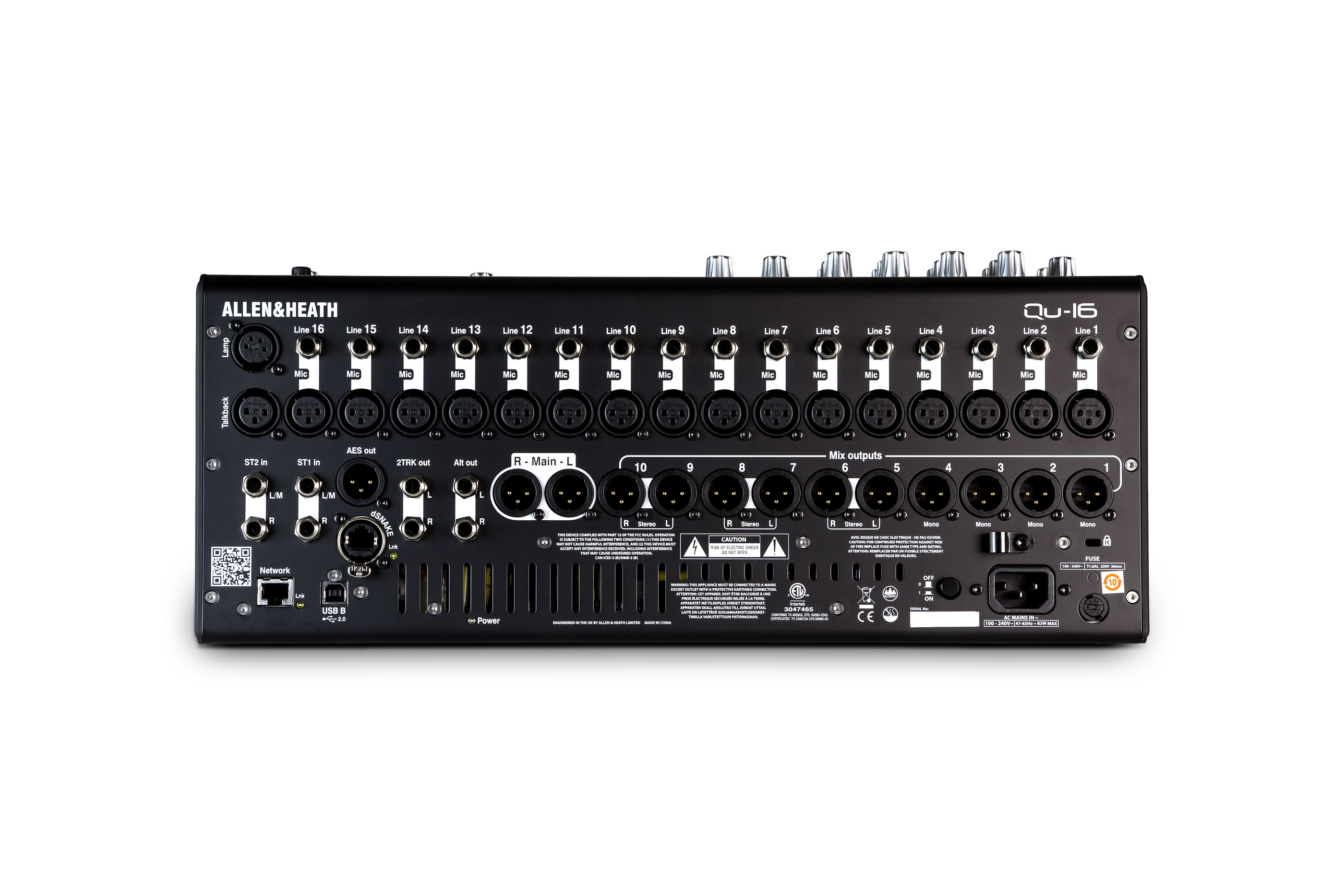

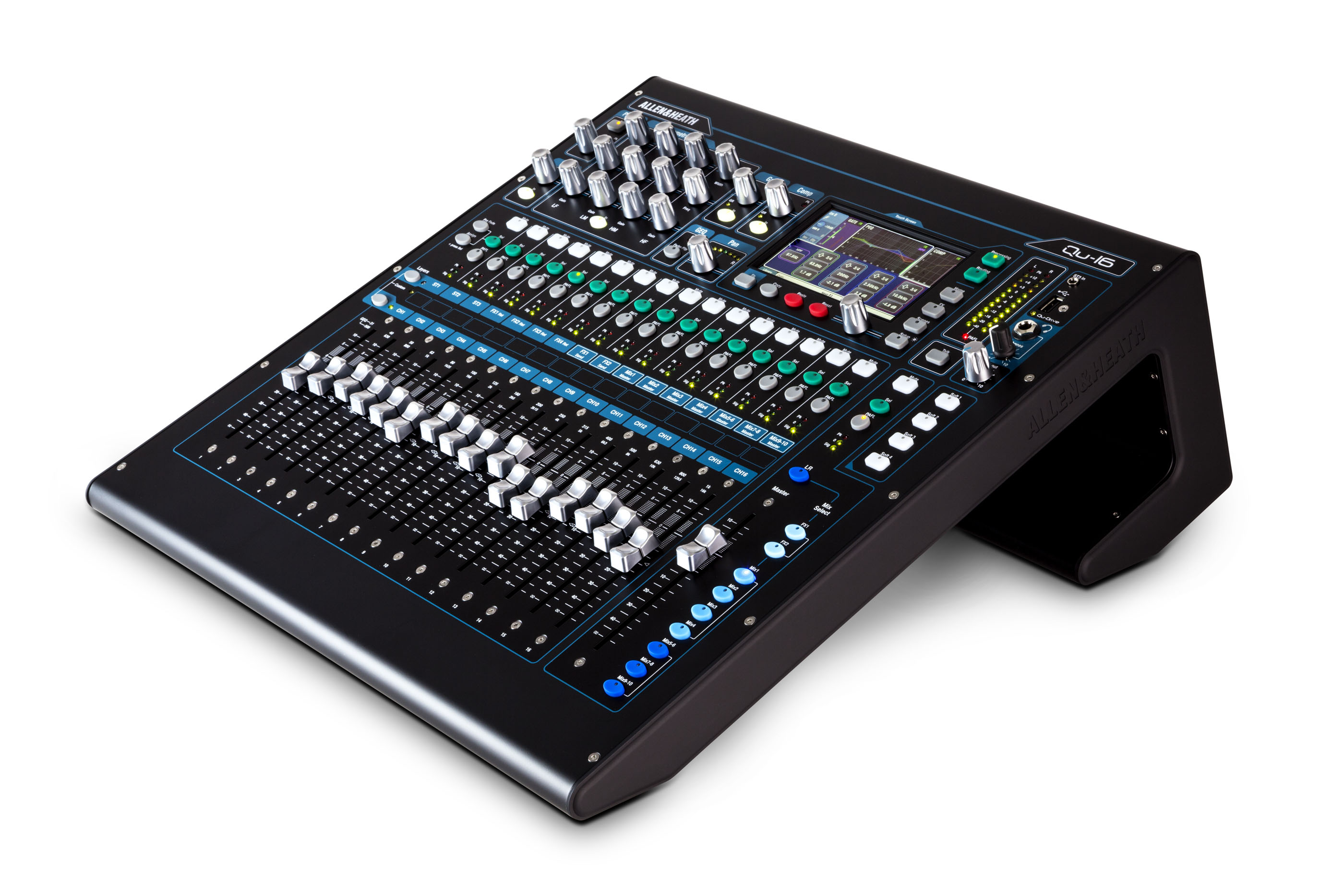

Allen & Heath QU-16
SKU: qu16
Allen & Heath

The Qu-16 reshapes digital mixing, combining innovative design and exceptional functionality to create a superb professional mixing experience.

The Qu-16 reshapes digital mixing, combining innovative design and exceptional functionality to create a superb professional mixing experience. Bristling with all the features you’d expect from a top of the range digital console and incorporating technologies pioneered on the GLD and iLive digital mixing systems, Qu-16 has the power and pedigree to deliver class-leading audio performance.

Qu series features include multitrack recording direct to USB, Automatic Mic Mixing, ProFactory mic presets, plus an ever growing ecosystem of apps, accessories and remote I/O.

  • 16 Mono Mic/Line Inputs (TRS + XLR)
  • Recallable AnaLOGIQTM Preamps
  • 3 Stereo Inputs (TRS)
  • 12 Mix Outputs (XLR)
  • 7 Monitor Mixes (4 mono + 3 stereo)
  • 4 FX Engines
  • 2 dedicated FX Sends / Returns
  • 4 Mute Groups
  • 4 DCA Groups
  • AES Digital Out
  • 24×22 USB Audio Interface
  • dSNAKETM Remote Audio Port
  • 17 Motor Faders
  • 800×480 Touchscreen
  • 4 Soft Keys
  • Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
  • Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
  • Automatic Mic Mixer
  • Channel Ducker on all Inputs
  • ProFactory Mic Presets
  • iLive FX Library
  • Built-in Signal Generator
  • RTA with Peak Band indication
  • Spectrogram to aid feedback elimination and room acoustics
  • Qu-Drive Direct Multitrack Recording / Playback on USB drives
  • DAW MIDI Control
  • Qu-Pad iPad App
  • Qu-You iPhone / Android personal monitoring app
  • Qu-Control customisable iOS app for simple wireless control
  • Compatible with ME Personal Mixing System
  • High contrast metallic finish controls, matching premium GLD Chrome series
