P9.5 Outdoor LED Video Wall
SKU: p95outdoor
JP Lilley

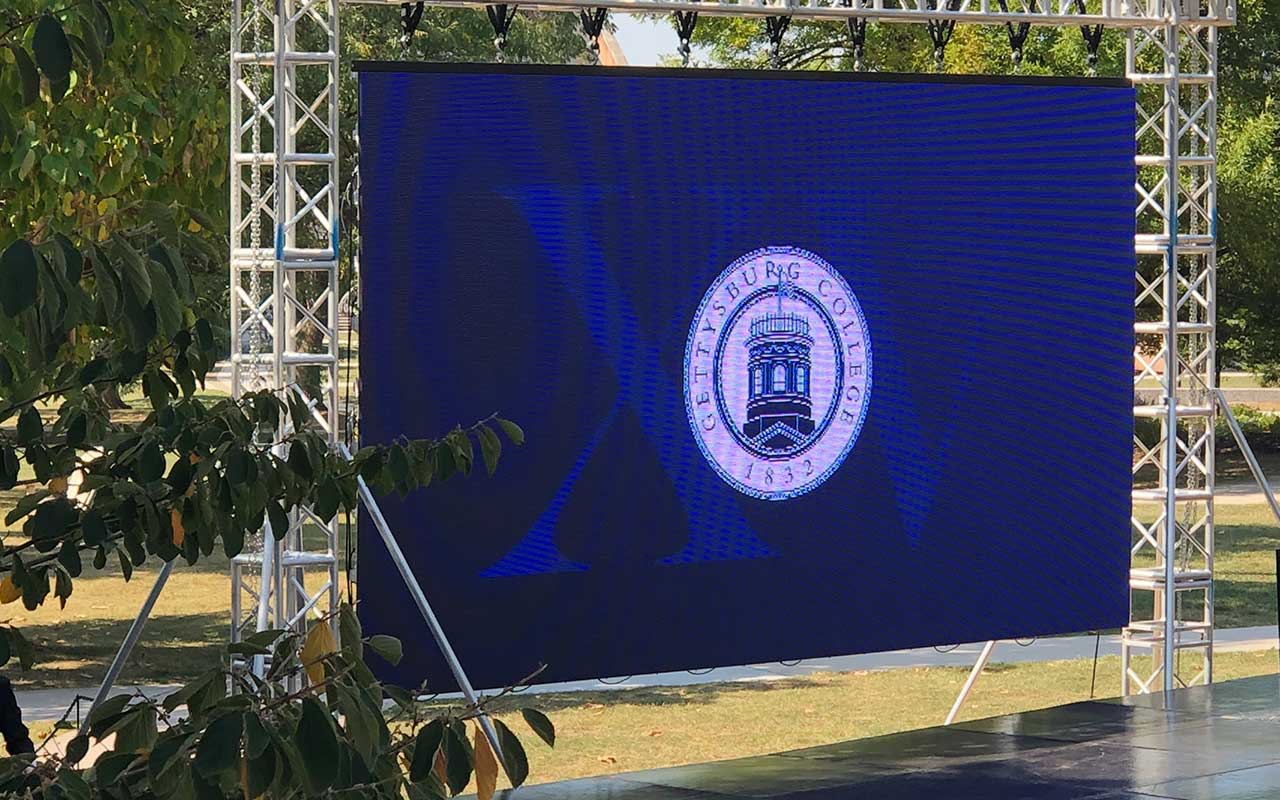

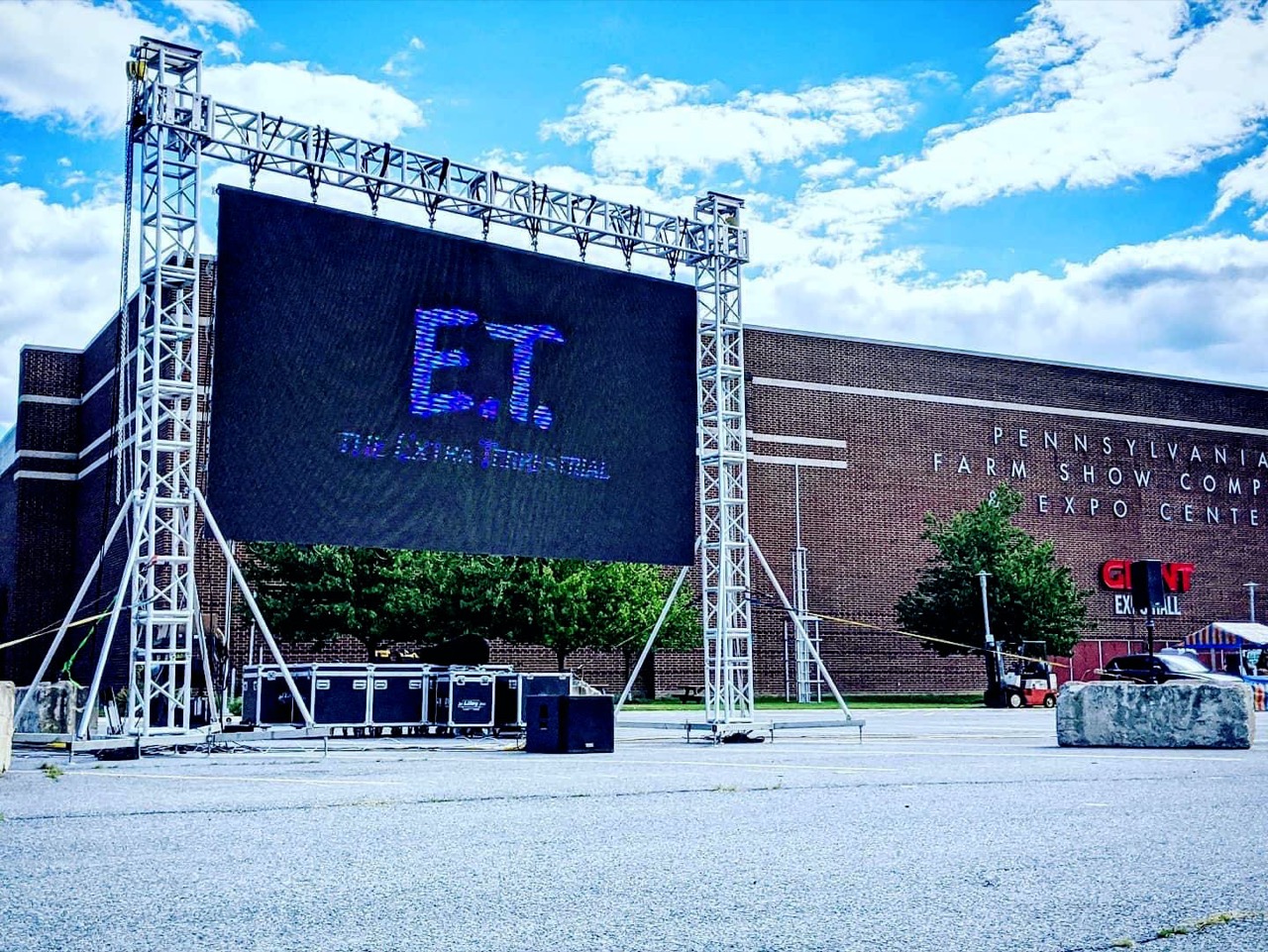

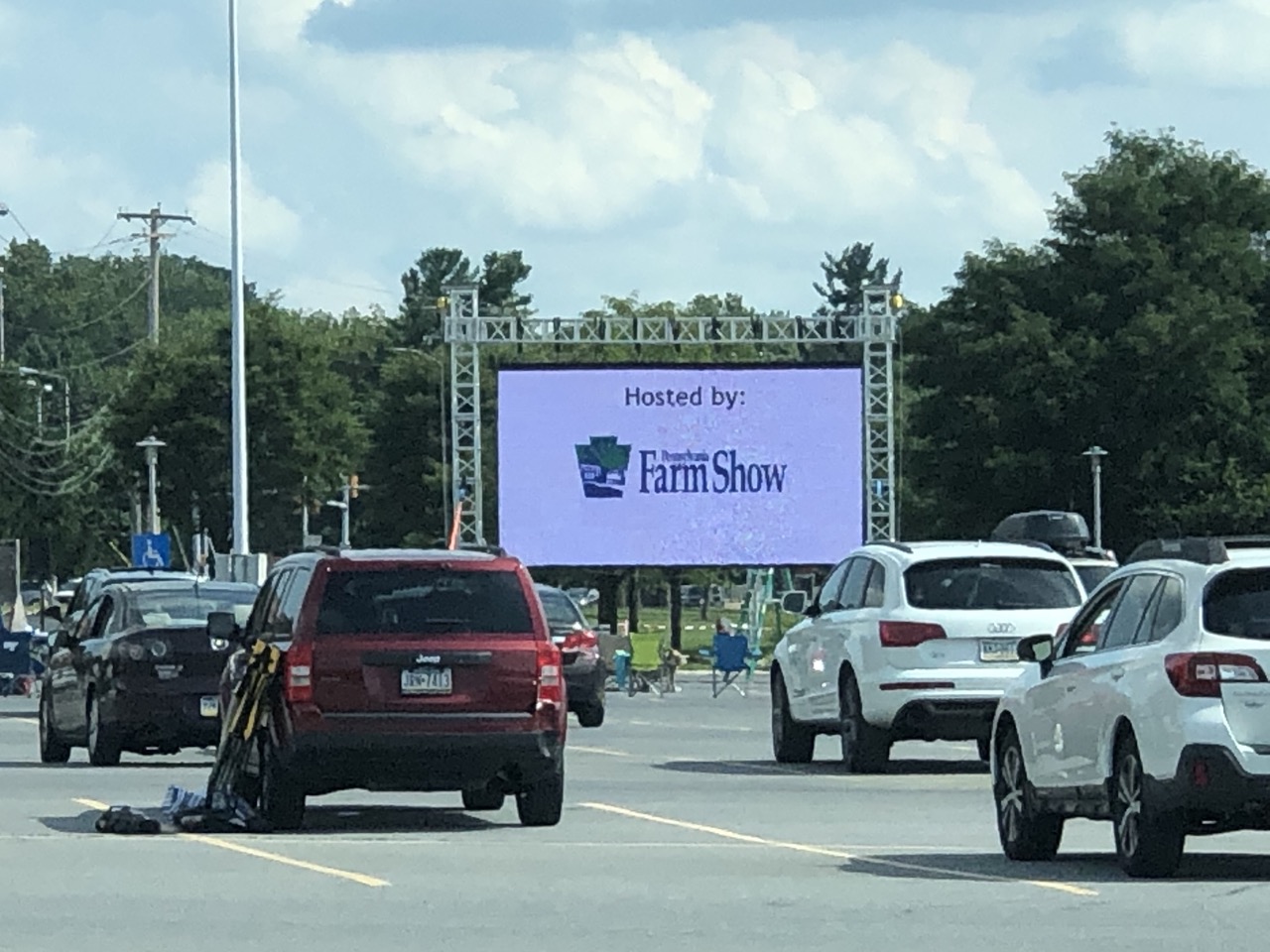

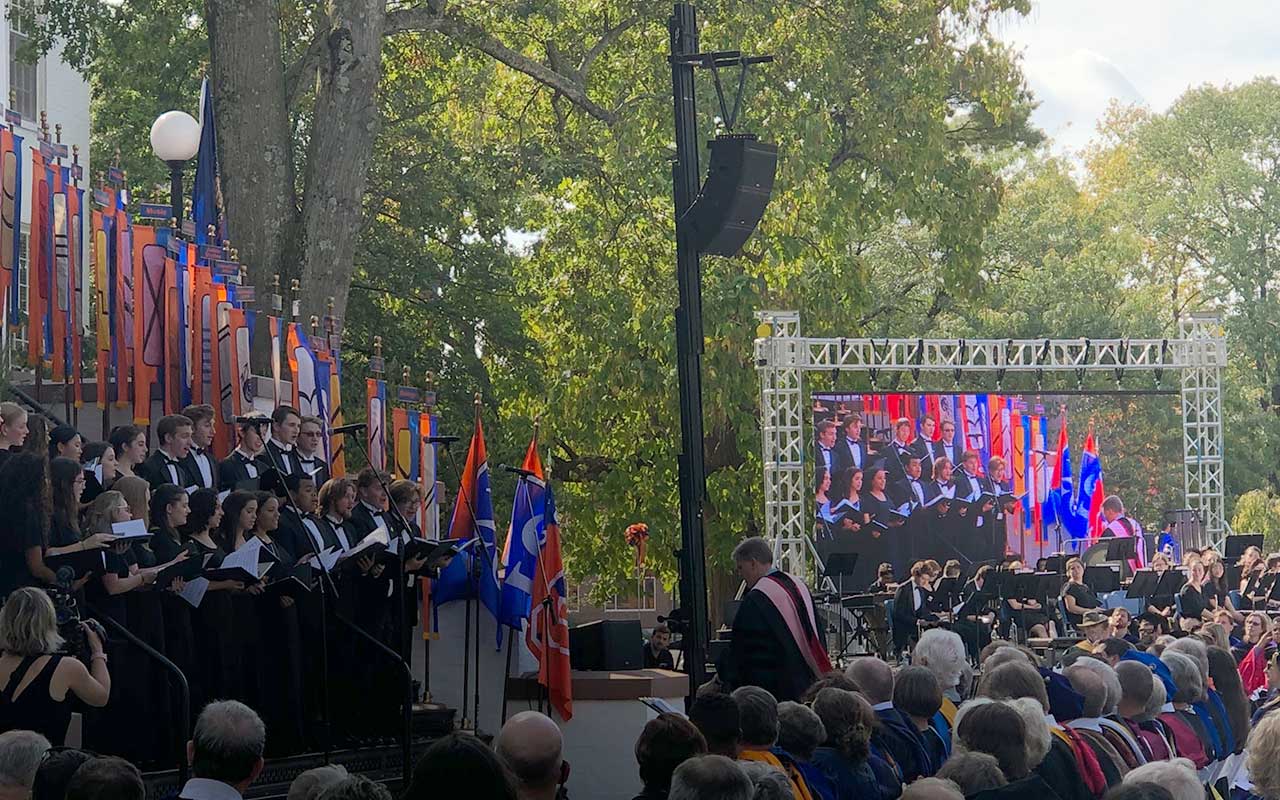

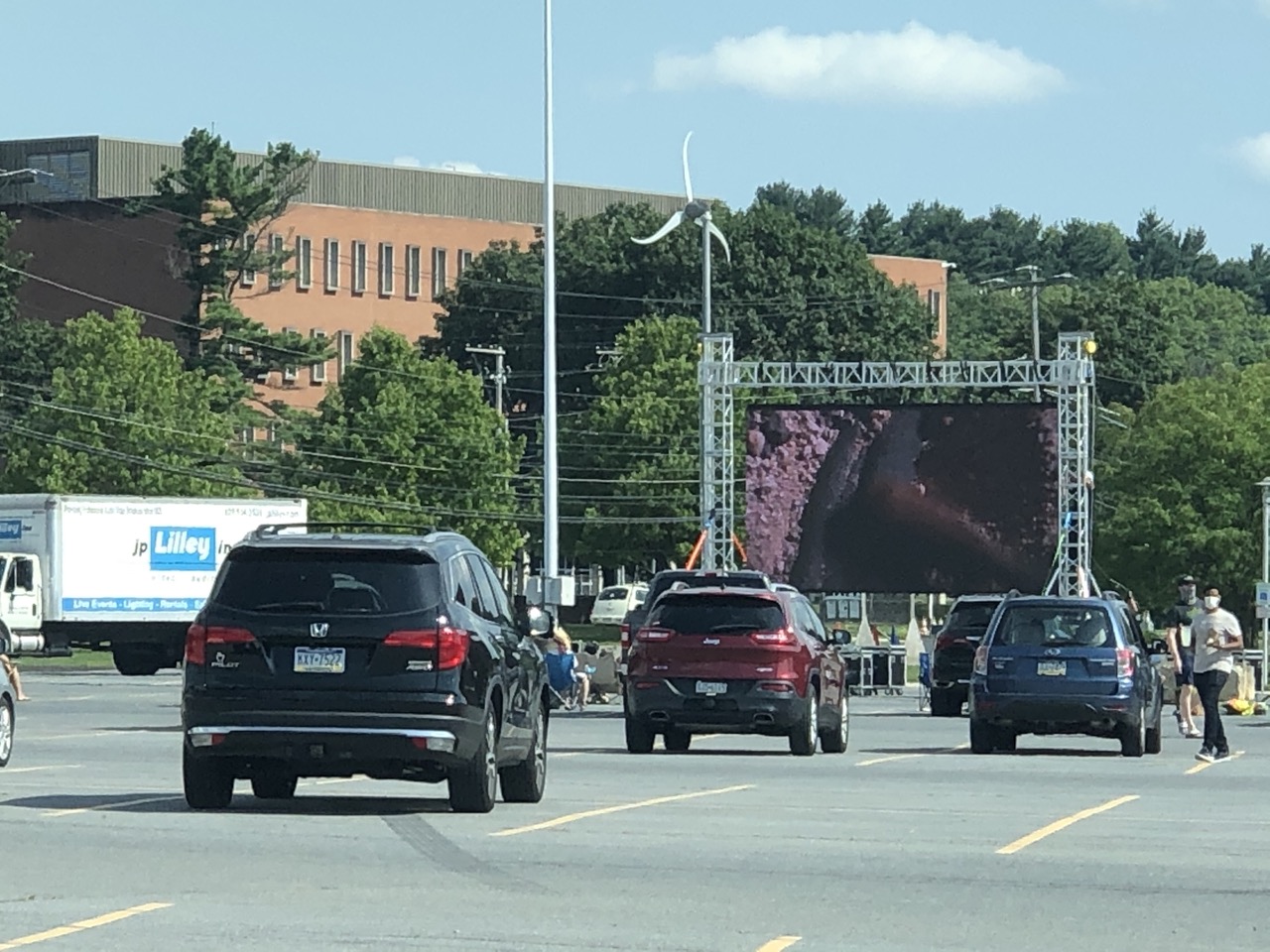

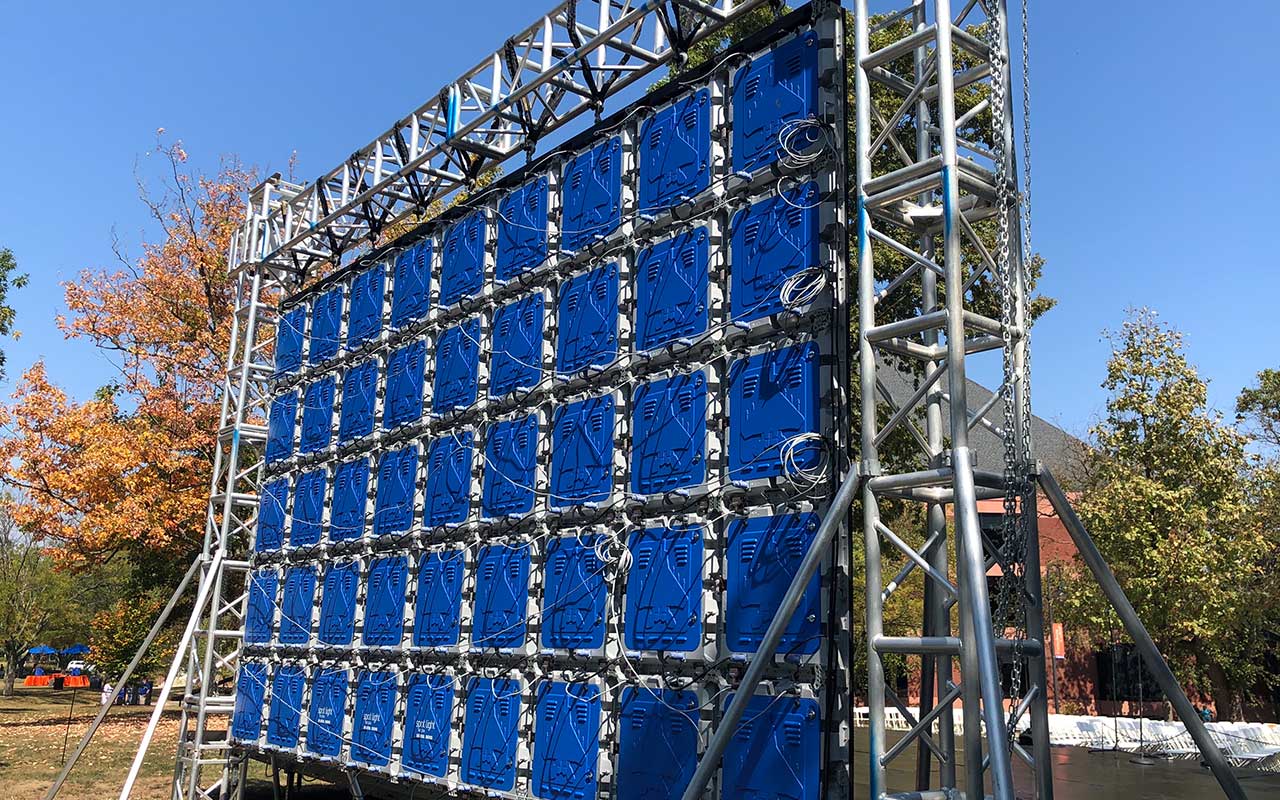

P9.5 Pitch Outdoor LED Video Wall for rental and staging events.

Weatherproof, and five times as bright as indoor tiles, outdoor LED displays successfully compete with daylight.

Specifications

Pixel pitch P9.5mm
Pixel configuration 1R1G1B
Pixel density 11141 pixels/㎡
Driving method 1/4 constant current
Refresh rate ≥1920Hz
Brightness ≥7000nits
Max. Power Consumption per Panel 190 W
Avg. Power Consumption per Panel 100 W
Min. Viewing Distance 32 ft
Best Viewing Angle 110°(H)/55°(V)
Grey Scale 65536 Level
Processing depth 16bit
Brightness control 256 Level automatically
Ingress protection IP67 Front; IP55 Rear
Panel size 25.25"  x  25.25"
Weight per Panel 36.75 lbs
MTBF 5000 hours
Lifetime 100000 hours



Typical Applications Include

  • Commencements
  • Stage Backdrops
  • Festivals
  • Concerts
  • Marathons
  • Sporting Events


  • Digital Signage
  • Branding
  • Advertsing
  • Product Release
  • Multi-Display
  • Large Format Display


Get a Quote
