Building on the features that made the MD series famous, these models add even more user friendly features.

Backlit panel and standard features including a wide variety of formats and markers, 4 user-config Icon driven Menu System, Waveform Display with dual Audio Bars, Front Panel Headphone output, Variable Pixel-to-Pixel function plus Marshall's industry leading PEAKING Filter now in four colors for easier focus assist make these monitors a must have appliance for serious photographers and videographers producers and directors alike. The monitor offers durable front panel function buttons, RGB Check Field / Field Detect, RGB gain and bias control, polycarbonate screen protection. New features include multiple DSLR presets, six User Presets, Adjustable IRE Clip Guide, and Backlight control just to name a few.

All of these new MD series monitors come equipped with an HDCP compliant HDMI input with pass-through.

Key Features

• FULL RESOLUTION 1920 x 1080 LCD panel
• High Brightness 700-nit with Adjustable Backlight
• DSLR Ratio Adjustment with 4 DSLR Ratio Presets
• On Screen Waveform / Stereo Audio Bar Display
• Manual Gamma Adjustment
• Adjustable IRE Clip Guide (Zebra Filter)
• 1/4"-20 mounts on all sides
• Stereo Headphone Output (select a L+R Pair from the available channels)
• 6 Monitor Configuration User Presets
• Custom Screen Markers (choice of four colors and variable lines widths)

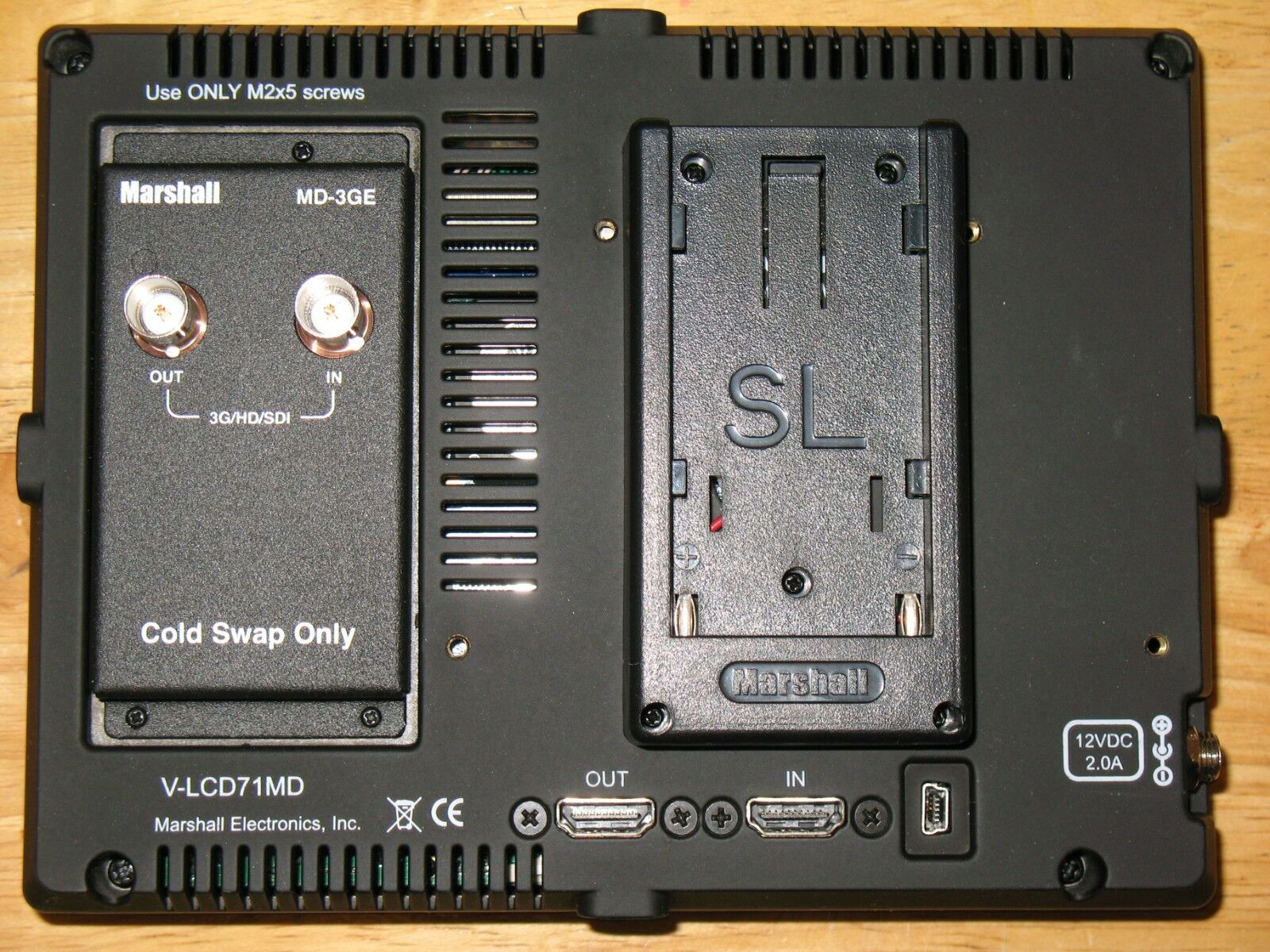

• HDMI Pass-Through (HDCP Compliant), 3GSDI (With Intput Module)
• HDMI Auto Color Space and Ratio detect
• New Peaking Filter (Choice of four color highlights and variable sensitivity)
• False Color Filter
• Four User Assigned Function Buttons with 32 possible uses
• Pixel-to-Pixel Panning (Custom Pixel-to-Pixel Mode)
• 15:9, 16:9, 4:3, Pixel-to-Pixel modes
• Input Crop with automatic scaling
• RGB Check Field with Monochrome
• Scratch Resistant Protective Screen
• Variety of Optional User-Replaceable Battery Adapters available
• Icon assisted Menu System

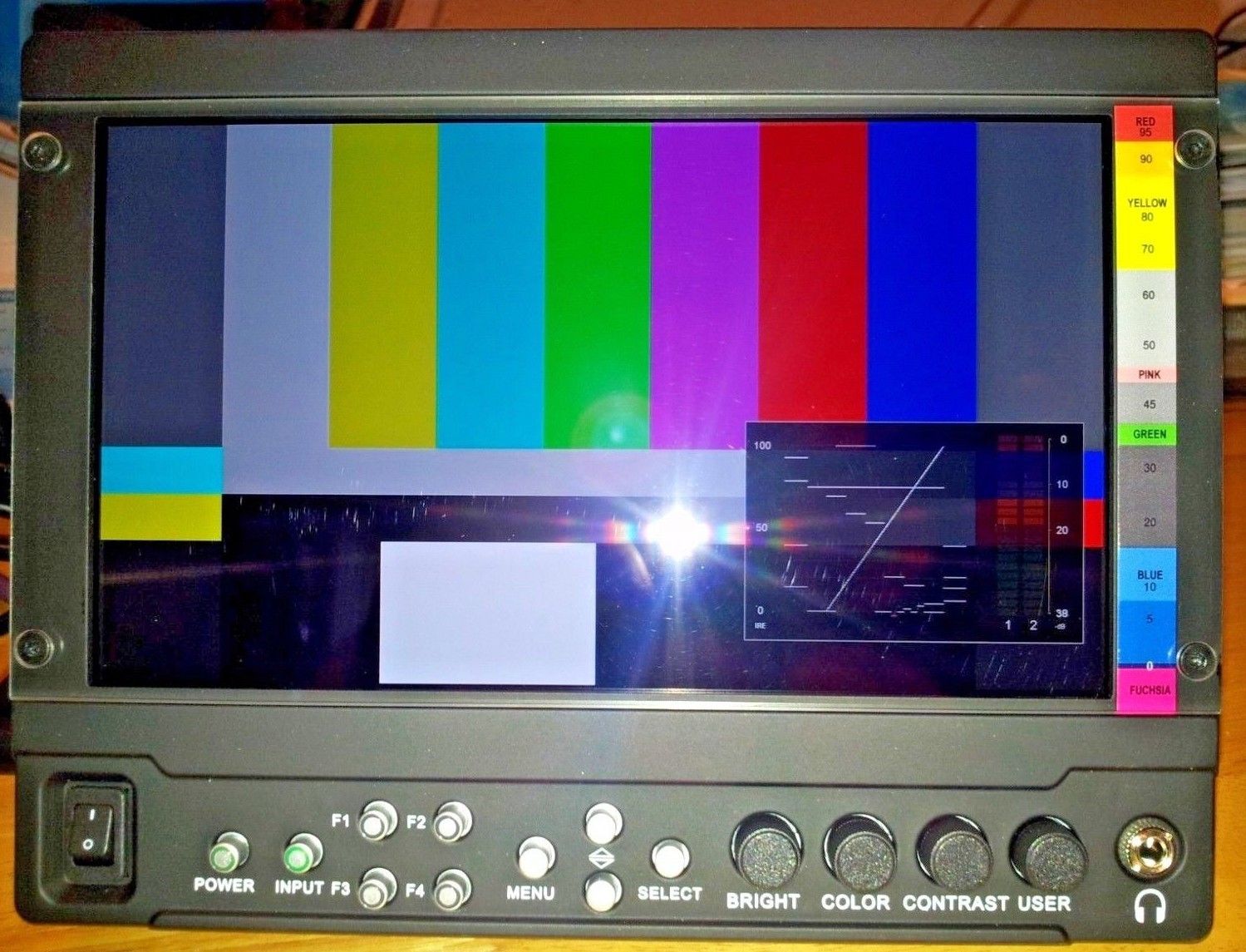

Waveform, Audio and Clip Guide displays

The V-LCD71MD incorporates both a Waveform display and Stereo Audio bars. These may be displayed separately or together in any one of the four corners of the monitor. The Stereo Audio is de-embedded from either the HDMI input (8 channels) or from the optional 3GSDI input (16 channels). Any pair of the available channels may be selected for both the display and the Headphone Output.

The Zebra function (Clip Guide) is used to visually filter data on the screen that is under a Lower Threshold or over an Upper Threshold. Data on either side of the filters can be displayed with a custom color.

False Color Filter

The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

To best utilize this feature, you must understand the color chart and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The False Color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Overexposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a "neutral" or "mid-level" exposure commonly used for objects (not people).

Adjustable Screen Markers:

A variety of screen markers in 4:3, 16:9, and full screen modes allow accurate monitoring of the different aspect ratios used in broadcast environments. User Markers allow for custom aspect ratio, cropping framing, now with a choice of four colors and variable width lines.

Stereo Headphone Output:

8 channels of audio from the HDMI input or 16 channels of audio from the HDSDI input are available for monitoring. The headphones can monitor any pair from the available channels.

Peaking Filter

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. When the camera operator adjusts (or "racks") the focus control (on the camera lens), different parts of the image will have these colored highlights. This indicates that this portion of the image is sharp or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has the colored highlights.
