Chauvet Ovation E-910FC
SKU: Ovation E-910FC
Chauvet

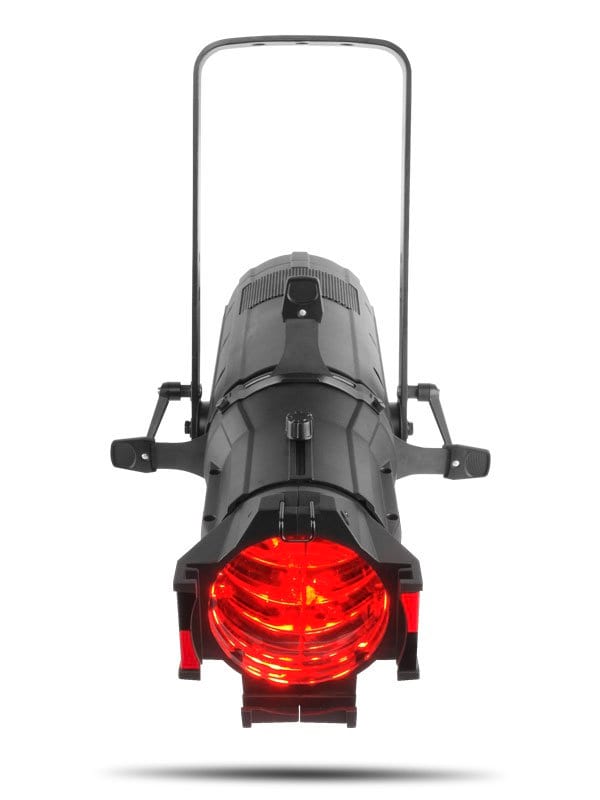

Ovation E-910FC is a high-performance ERS-style fixture with full RGBA-Lime color mixing and color temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full 16-bit dimming (per color and master), selectable PWM, RDM and on-board dimming curve selection. Also accessible is our Virtual Color Wheel which matches popular gel colors.

Features

  • Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production
  • Ultra smooth 16-bit dimming of master dimmer and individual colors
  • Flat, even field of light with superior color mixing
  • Virtual Color wheel with color matched to popular gel colors
  • Color Temperature Presets from 2800 K to 6500 K with high CRI & CQS
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio and theatre applications
  • Works perfectly with industry standard lens tubes and accessories

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 28 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

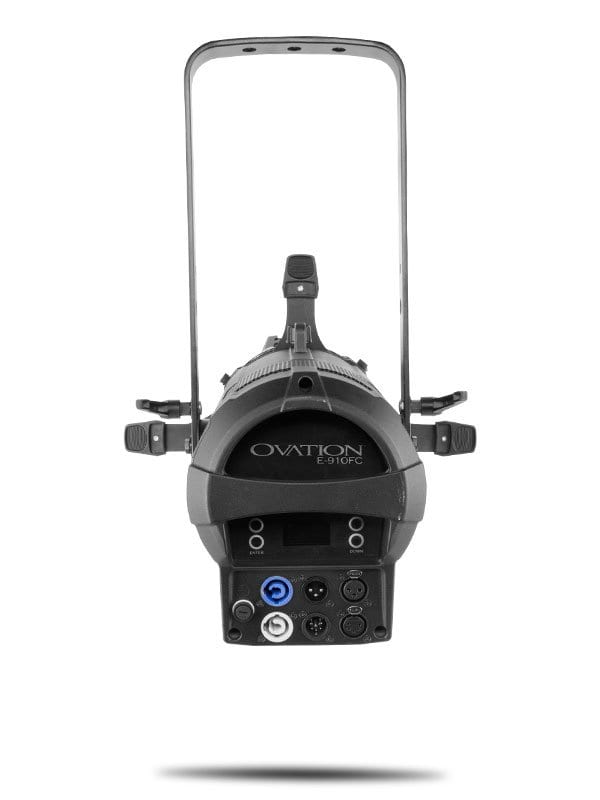

Connections

Power Connection: Edison (Local) plug to Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control

Protocol(s): DMX, RDM
DMX Channels: 3, 5, 7, 10, 12, 13 or 15
Modes/Personalities: 7 personalities (3, 5, 7, 10, 12, 13, 15)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 120 V; 11units @ 208 V; 12 units @ 230 V
Power and Current: 240 W, 2.006 A @ 120 V, 60 Hz
Power and Current: 234 W, 1.160 A @ 208 V, 60 Hz
Power and Current: 234 W, 1.074 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET
IP Rating: IP20, dry location
