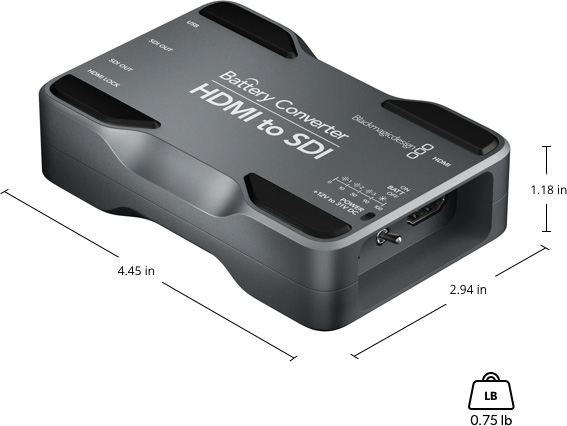

BlackMagic Battery Converter HDMI to SDI
SKU: blackbat_hdmisdi
Blackmagic Design

Convert an HDMI input to SDI output. Convert HDMI camera outputs to SDI for longer cable lengths and professional connectivity on location. Includes SD/HD auto switching and features dual SDI outputs. Includes a built-in lithium-ion polymer rechargeable battery and external power supply.

Standards

SD Format Support

525i29.97 NTSC, 625i25 PAL

HD Format Support

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

SDI Compliance

SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2

SDI Color Space

YUV

SDI Auto Switching

Automatically selects between SD-SDI, HD-SDI and Level B 3 Gb/s SDI.

SDI Format Support

525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HDMI Format Support

480p60 NTSC, 576p50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HDMI Color Space

YUV and RGB

HDMI Color Precision

4:2:2 in all formats and 4:4:4 up to 1080p29.97
