NovaPro HD
SKU: NovaPro HD
NovaStar

Professional LED display controller.

The NovaPro HD is a professional LED display controller that besides the function of display control, it also features in powerful front end processing, so an external scalar is no longer needed. With professional interfaces integrated, the NovaPro HD meets the requirements of broadcast industry, in image quality and in control.

The inputs of the NovaPro HD include CVBS, VGA, SDI, DVI, HDMI and DP. They support input resolution up to 1080p @ 60Hz. Highest pixel clock is 165MHz. Output bandwidth is up to 4GBit. Advanced de-interlacing motion adaptive processing technology is adopted so that images are clear and fine. And with HDMI, the gray scale depth can be up to 12bits. Each input can be fully configured with contrast, brightness, hue, saturation, and RGB gain. Inputs can be scaled up or down to fit the LED display resolution.

Computer software for system configuration is not necessary. The system can be configured using one wheel and one button. All can be done just by fingers. That's what it's called Touch Track! You can also configure the system with browsers. This gives you the option of using a remote PC (Windows or Mac or Linux), a pad or even a smart phone to do the configuration. Real-time previews assist with system set-up and confirm source status.

The NovaPro HD has DMX512 and GenLock interface. Professional control and synchronization are ready to go. Optical fiber outputs enable the confident long-distance data transmission.

NovaPro HD Features:

  • Product type: Video Processor
  • Zooming: Support
  • Connecting: Support
  • Picture in picture: Two video source
  • Special effects when switching video source: Support
  • GenLock: Support
  • User defined EDID: Support
  • Output resolution: 1920×1200, 2048×1152, 2560×960 (width and height can be specially defined by customers)
  • Video input interface: HDMI, DVI, SDI, DP, VGA, and CVBS

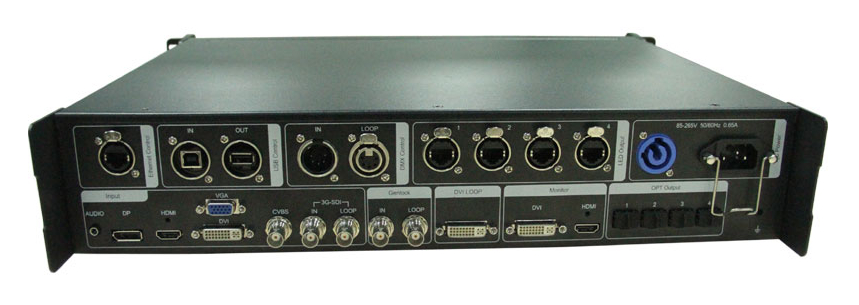

  • Output interface: Four ethernet accesses, four fiber Interfaces, one DVI, one HDMI monitoring interface

NovaPro HD Specifications:

  • Input index and Resolution:
    • CVBS: PAL/NTSC
    • VGA: VESA standard
    • DVI: VESA standard (support 1080i input) and support HDCP
    • HDMI: EIA/CEA-861 standard, conforming to HDMI-1.3 standard and supporting HDCP
    • DP: VESA standard
    • 3G-SDI: 480i, 576i, 720p, 1080i/p (3G SDI)
  • Output index and Resolution:
    • DVI input looping out(DVILOOP):
      • Consistent with DVI input
      • Support HDCP looping out
    • DVI (2 ports) and HDMI (1 port):
      • 1280×1024/60Hz
      • 1440×900/60Hz
      • 1680×1050/60Hz
      • 1600×1200/60Hz
      • 1600×1200/60Hz – Reduced
      • 1920×1080/60Hz/50Hz
      • 2560×816/60Hz
      • 2048×640/60Hz
      • 1920×1200/60Hz
      • 2304×1152/60Hz
      • 2048×1152/60Hz
      • 1024×1280/60Hz
      • 1536×1536/60Hz
  • User-defined output resolution (bandwidth optimization)
  • Horizontal resolution: maximum 3840 pixels
  • Vertical resolution: maximum 1920 pixels
  • SDI input looping out (SDILOOP): 480i, 576i, 720p,1080i/p (3G SDI)
  • Input power: 100~250VAC, 50/60Hz, 0.65A
  • Overall power consumption: 30W
  • Dimensions:
    • Operating temperature: -20~60°C / -4~140°F
    • Weight: 6Kg / 13.23 lbs.
    • Size (H x W x D - without hardware): 88.2 x 443 x 321.5mm / 3.47 x 17.44 x 12.66 in
