Teradek Bolt Pro 600 Wireless 3G-SDI/HDMI Video Transmitter/Receiver Set
SKU: teradekboltpro600
Teradek

Teradek Bolt Pro 600 Wireless 3G-SDI/HDMI Video Transmitter/Receiver Set

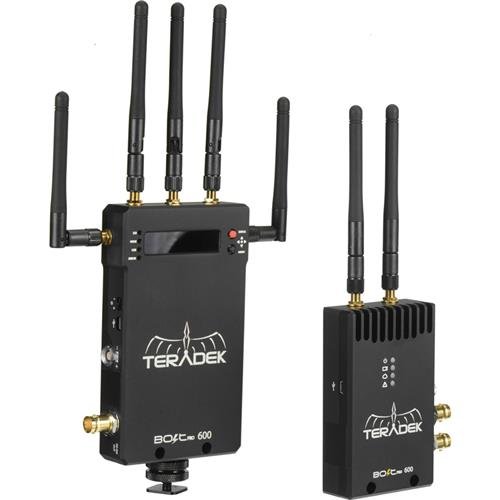

This Transceiver Set inlcudes a Bolt Pro 600 3G-SDI/HDMI Transmitter and a Bolt 600 3G-SDI/HDMI Receiver. The Teradek Bolt Pro 600 RX SDI/HDMI Wireless Video Receiver features an OLED screen for quick RX pairing, manual frequency selection, external antennas and a transmission range of up to 600' line of sight. The Teradek Bolt is a zero delay (< 1ms) wireless video system that transmits uncompressed 1080p60, 4:2:2 video up to 2000' over the unlicensed 5GHz band. All Bolt models are multicast capable up to 4 receivers, support timecode and metadata pass through and include the USB 3.0 GRAB Engine.

USB 3.0 GRAB Engine
Capture cards are a thing of the past with Teradek's new GRAB Engine. Every Bolt RX includes a USB 3.0 output that allows you to ingest Bolt's uncompressed video feed directly into a computer or DIT cart with no added delay.

Real-Time Cross Conversion Extras
It supports real-time format conversion from TX to RX, allowing you to automatically cross convert from HDMI to 3G-SDI (or vice versa) without any extra hardware. The model also outputs a test pattern when the video signal is lost. It supports quick RX pairing via the OLED screen and manual frequency selection.

Specifications

VIDEO
Video resolution: Tx – 1080p60/59.94/50/30/29.97/25/24/23.98, 1080psf30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 480p59.94/576p50 (via HDMI ports only), 480i(NTSC)/576i(PAL)
Color sampling: Depends on the input/output types and RX settings; SDI 10-bit with no format conversion and FPGA v.1.1.0 or later, 8-bit colors for the rest
Inputs: Tx – 1 x 75 Ohm BNC, 1 x Type A receptacle HDMI; Rx – No
Outputs: Tx – 1 x 75 Ohm BNC(Loop-out); Rx – 1 x USB 3.0 micro B receptacle, 1 x 75 Ohm BNC, 1 x Type A receptacle HDMI
Delay(TX to RX): <0.001sec

AUDIO

Format support: Tx – 48kHz 24-bit PCM, Wireless Frequency: Tx – Non-DFS Frequencies: US : 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz, EU & JP : 5.19 ~ 5.23 GHz, DFS Frequencies: US : 5.27 ~ 5.55 GHz and 5.67 GHz, EU & JP : 5.27 ~ 5.67 GHz
RF power: Tx – 19dbm EIRP(with two 2dbi antennas); Rx – 17dbm EIRP(with one 2dbi TX antenna)
Range: Up to 600ft line of sight
Unicast / Multicast: Unicast/Multicast for both Tx and Rx
Noise rejection: Tx – Can coexist with WiFi and 5GHz cordless phones

POWER
Input: 2-Pin Lemo 7-28 VDC for both Tx and Rx
Internal battery: No for both Tx and Rx
Consumption(1080p60): Tx – 7.8 Watts; Rx – 8.5Watts

GENERAL
LCD screen: Tx – No; Rx – Yes
Size: Tx – 4.3″ x 2.6″ x 1.1″(109.2 x 66.0 x 26.7mm); Rx – 5.8” x 3.5” x 1.0”(147.3 x 88.5 x 25 mm)
Weight: Tx – 9.9oz(282g); Rx – 13.3oz(376g)
Firmware: Tx – Upgrade via Mini-USB
Operating temperature: Tx – 0 ~ 50 deg-C
Chassis material: Milled aluminum for both Tx and Rx
Mountability: Hot-shoe mount for both Tx and Rx, Multiple mounting options with 1/4″ holes for both Tx and Rx
