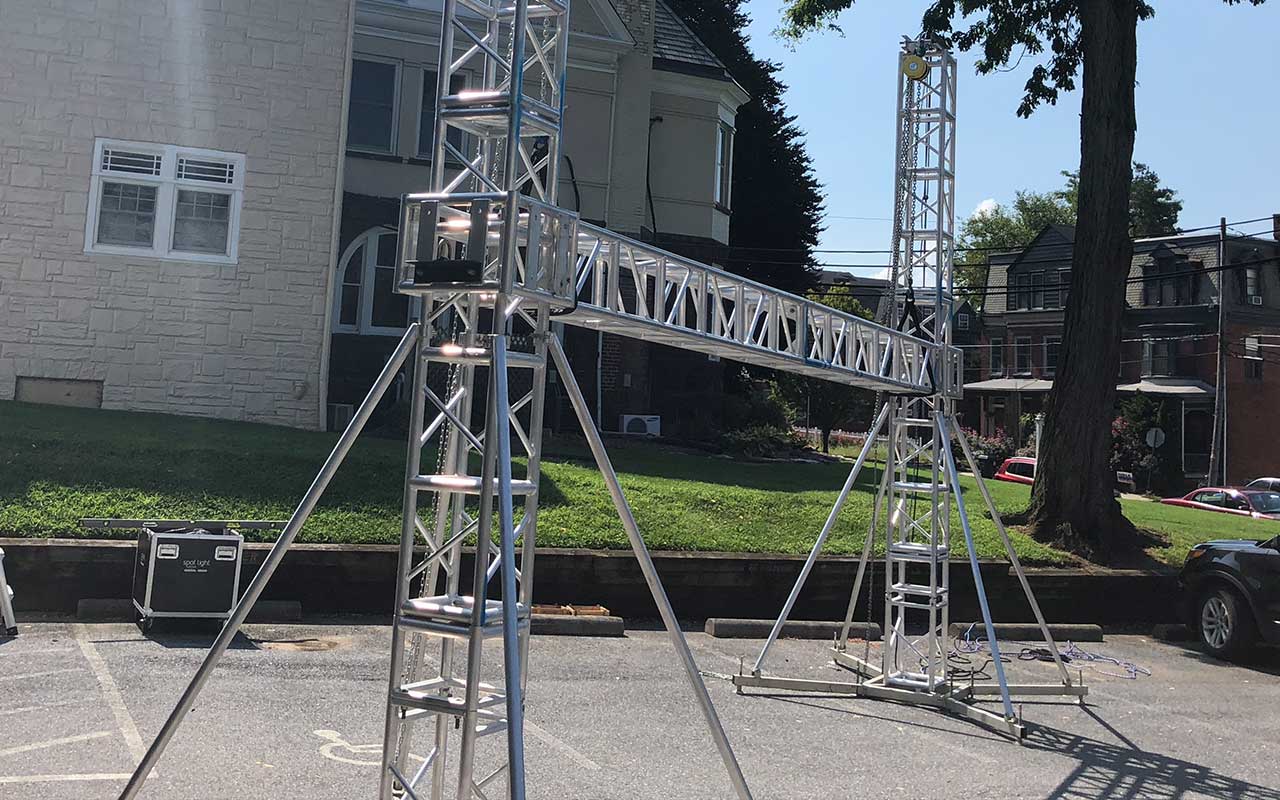

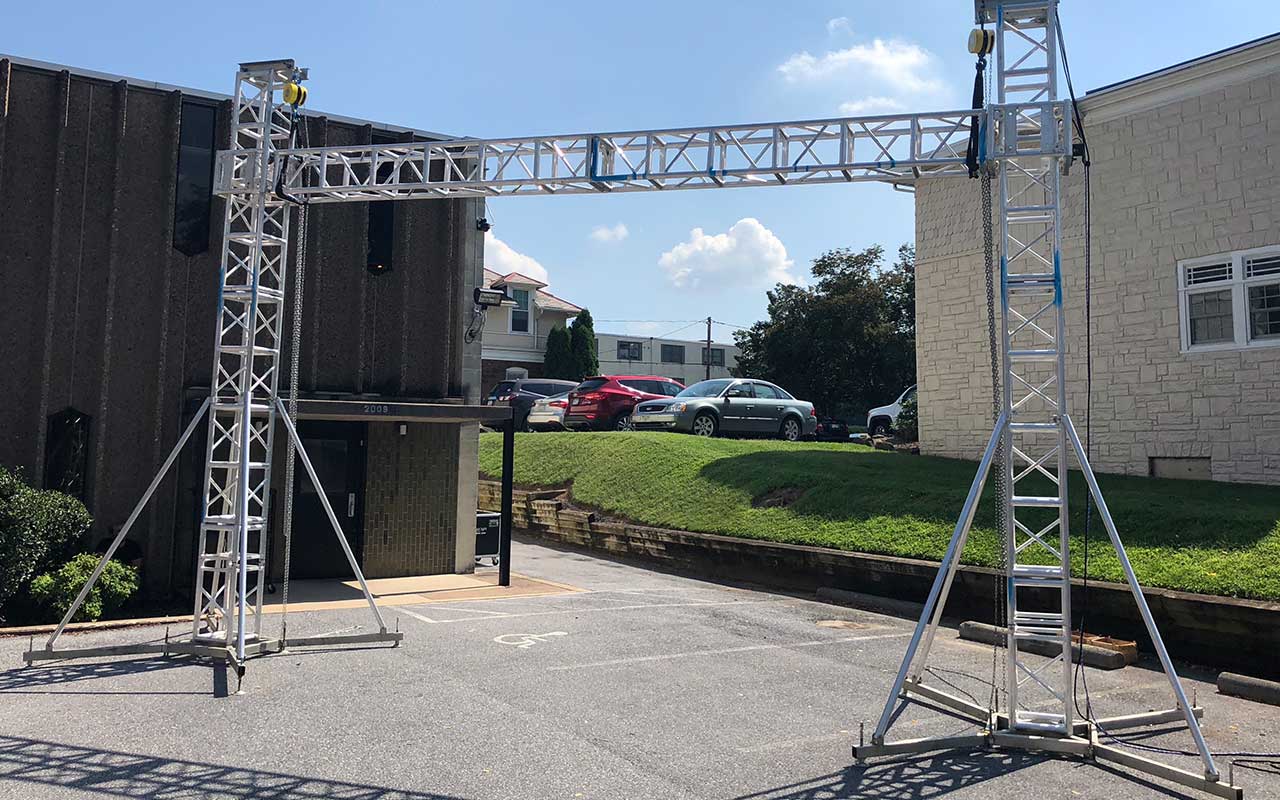

Features:
- Fully assembled vertical tower sections is 6 meter ( 19.68 feet)
- Aluminum construction
- Square box construction 40 CM (15.748 inches)
- Modular design for fast assembly
- Compact for easy transport
- Individual adjustable leveling pads per outrigger leg
Components:
- Two head blocks
- Two sleeve blocks
- Two 1 Meter (39.37 inch) high hinged base sections
- Base foot print with outriggers is approx 2.12 meters by 2.12 meeters (83.52 inches by 83.52 inches)
- Four 2 Meter (78.74 inch) vertical tower truss sections
- Two 1 Meter (39.37 inch) vertical tower truss sections
- Two 3 Meter (118.11 inch) horizontal truss sections
- Eight 1 Meter (39.37 inch) outriggers for base sections
- Two 2Ton manual chain hoists
- 8 foot long and/or 16 foot long 3/8" diameter LiftAll steel cables for guy wires
- Includes 5/8" shackles
- Cables can be anchored to ground stakes or concrete barriers
Typical Applications Include
|
|
